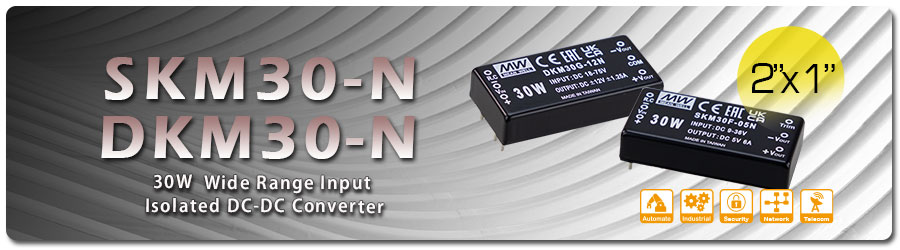

SKM30-N/DKM30-N Series: 30W 2〞x 1 〞Wide Range Input Isolated DC-DC Converter

By: Frank Chen / Product Manager
Frank@meanwell.com

MEAN WELL's SKM30 series is a 2”x 1” DC-DC converter with 2:1 input range, which has been on the market for more than 10 years. In order to fulfill wider input range requirements, MEAN WELL is proud to launch our new 4:1 wide range input single output SKM30-N and dual output DKM30-N series that keep the same footprint as the older series. These features make these converters suitable for electrical panels, telecommunication equipment, industrial control, distributed power architecture, and transportation applications.


 Series SKM30 SKM30-N / DKM30-N
 Input voltage range  2:1
(9~18Vdc, 18~36Vdc, 36~75Vdc)		  4:1
(9~36Vdc, 18~75Vdc)
 Output voltage  5V/ 12V/ 15V  SKM30-N: 5V/ 12V/ 15V
 DKM30-N: ±12V/ ±15V
 Working temperature  -40~+75oC

 -40~+90oC
(+60oC@full load no derating)
 I/O Isolated  1.5KVdc  3KVdc
 Warranty  2 years  3 years
 Specification LINK LINK
 Release time  2012 May  2022 Dec.





  • 2”x 1”packaging, industrial standard pin-out
  • 4:1 wide input voltage range
  • Free air convection, can operate between -40~+90oC(+60oC@full load no derating)
  • Meeting EN55032 Class A EMI performance without external components
  • No minimum load requirement
  • Built-in remote ON/OFF and output trimming (±10%)
  • Protections: short circuit, overload, over voltage
  • Dimensions (LxWxH): 50.8x 25.4 x 11.2mm
  • Approvals: EAC/ CE/ UKCA
  • 3 years warranty

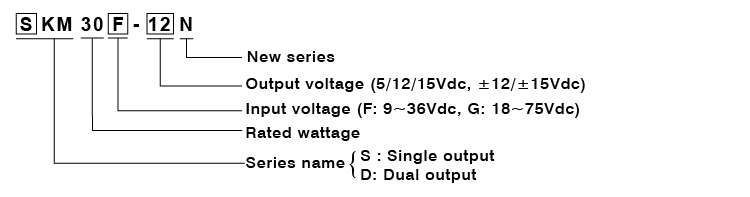

SKM30-N Series   DKM30-N Series
